MOTOR CONTROL & RELAY LOGIC.

Modular Contactors.

Pp


ETEK EKMF Modular Contactors – Compact, Reliable Switching Solutions.

.

Iron Side Electrical and Automation offers the ETEK EKMF range of modular contactors, available in both automatic and manual control types. These compact and cost-effective units are neat in design, safe to use, and ideal for space-saving installations.

Available in:

  • 2-pole: 25A to 80A

  • 4-pole: 25A to 63A

Modular contactors like the EKMF series are commonly used in residential, commercial, and light industrial applications to control lighting, heating, ventilation, and small motors. They are ideal for use in distribution boards and automation systems where quiet, reliable switching is required.

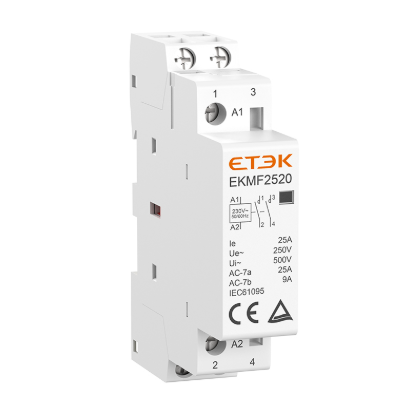

EKMF2520 MODULAR CONTACTOR - IRON SIDE ELECTRICAL AND AUTOMATION
EKMF Modular Contactor
EKMF Modular Contactor,
Automatic type
2-Pole, 4-Pole

25Amp-80Amp.

Coil Voltages: AC230V 50/60Hz.

Download Data Sheet

Automatic Control Type AC Modular Contactor

ETEK EKMF modular contactor designs offer manual and automatic versions with a wide range of ratings from 25A to 80A. Widely used in buildings for switching and controlling lighting, heating, ventilation, motor and pumps, the modular contactors take noise reduction to a new level.

● Standard: IEC61095, IEC60947-4-1
● Rated current: 16~100A
● Rated operational voltage: 250V,1P(1NO,1NC),2P(2NO,2NC,1NO+1NC)
                                               400V, 3P(3NO,3NC),4P(4NO,4NC,2NO+2NC,3NO+1NC)
● Rated Insulation voltage (Ui): 500V
● Coil Volatge: 24V/110V/230V
● Utilization Category: AC-7a (AC-1), AC-7b(AC-3)
● Method of Control: Automatic
● Mounting: 35mm Din rail

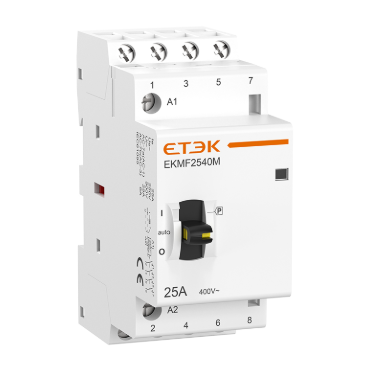

EKMF2540M MODULAR CONTACTOR - IRON SIDE ELECTRICAL AND AUTOMATION
EKMF Modular Contactor
EKMF Modular Contactor,
Manual Type

3-Pole & 4-Pole

25Amp~63Amp.

Coil Voltages: AC230V

Download Data Sheet

Manual Control Type Din Rail AC Modular Contactor

ETEK EKMF modular contactor designs offer manual and automatic versions with a wide range of ratings from 16A to 100A. Widely used in buildings for switching and controlling lighting, heating, ventilation, motor and pumps, the modular contactors take noise reduction to a new level.

● Standard: IEC61095, IEC60947-4-1
● Rated current: 16~100A
● Rated operational voltage: 250V,1P(1NO,1NC),2P(2NO,2NC,1NO+1NC)
                                               400V, 3P(3NO,3NC),4P(4NO,4NC,2NO+2NC,3NO+1NC)
● Rated Insulation voltage (Ui): 500V
● Coil Volatge: 24V/110V/230V
● Utilization Category: AC-7a (AC-1), AC-7b(AC-3)
● Method of Control: Automatic
● Mounting: 35mm Din rail
