MOTOR CONTROL & RELAY LOGIC.
Miniature Contactors.
Pp

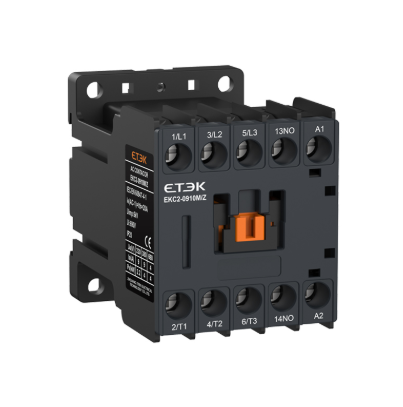

EKC2M Miniature Contactors.
EKC2-M mini contactor is an electrical relay designed to manage a power circuit using a lower power signal. It is a more compact version of a standard contactor and finds extensive applications in motor control, lighting control, and automation systems.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 9~12A
● Rated working voltage: 380/400V, 600/690V
● Rated insulation voltage: 690V
● Number of poles: 3P, 4P
● Auxiliary contact: 1NO or 1NC
● Ambient temperature: -5℃~+40℃
● Rated current: 9~12A
● Rated working voltage: 380/400V, 600/690V
● Rated insulation voltage: 690V
● Number of poles: 3P, 4P
● Auxiliary contact: 1NO or 1NC
● Ambient temperature: -5℃~+40℃
● Installation method: Din-rail or Screw installation.
Class 1 vs Class
EKC2M Contactor AC Control
EKC2M AC Miniature Contactor, 3-Pole.
AC3 9Amp-12Amp.
Coil Voltages: AC24, 48, 110, 240, 415V 50/60Hz.
EKC2M Contactor DC Control
EKC2M AC Contactor, 3-Pole.
AC3 9Amp - 12Amp.
Coil Voltages: DC24, 220V
