MOTOR CONTROL & RELAY LOGIC.
Contactors.
Pp
EKC Magnetic Contactor Series.
.
AC3 9Amp-95Amp.
Coil Voltages: AC24, 48, 110, 240, 415V 50/60Hz.
(For DC Coil please see EKC2W & EKC1 range)

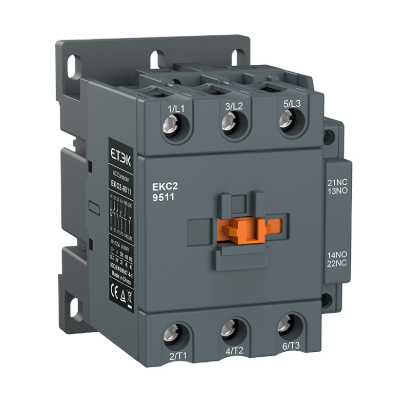

EKC2 series AC contactor has a novel appearance and compact structure. It is used to frequently start and control AC motors, connect and break circuits over long distances, and can be combined with appropriate thermal overload relays to form an electromagnetic starter.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 9-95A
● Rated working voltage: 220V~690V
● Rated insulation voltage: 690V
● Number of poles: 3P, 4P
● Auxiliary contact: 1NO+1NC
● Installation method: Din-rail or Screw installation
3-Pole & 4-Pole
AC3 115Amp - 2600Amp.
Coil Voltages: AC24, 110, 240, 415V
(For DC Coil please see EKC2W & EKC1 range)

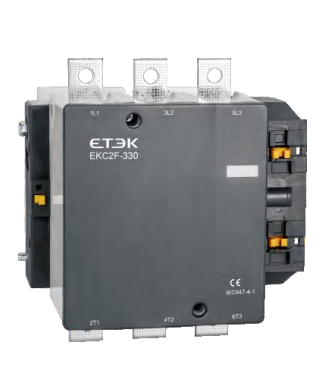

EKC2F series AC contactor has a novel appearance and compact structure. It is used to frequently start and control AC motors, connect and break circuits over long distances, and can be combined with appropriate thermal overload relays to form an electromagnetic starter.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 115-260A
● Rated working voltage: 220V~690V
● Rated insulation voltage: 690V
● Number of poles: 3P, 4P
● Auxiliary contact: 1NO+1NC
● Installation method: Din-rail or Screw installation
3-Pole
AC3 12Amp - 95Amp.
Coil Voltages: AC240V
(For DC Coil please see EKC2W & EKC1 range)
Built-in Surge Suppressors Contactor
EKC2SU Series ac contactors are used for controlling 3-phase motor circuits up to 690v Ac. These contactors are of the block type design with 3 main poles. Built in 1NO+1NC auxiliary contact and surge suppression, resulting in installation time and cost savings.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 12-95A
● Rated working voltage: AC220/230V; 380/400V; 660/690V
● Coil voltage: AC240V 50/60Hz
● Rated insulation voltage: 690V
● Number of poles: 3P
● Main contact: 3NO
● Auxiliary contact: 1NO+1NC
● Installation method: Din-rail or Screw installation
3-Pole
AC3 18Amp - 65Amp.
Coil Voltages: ACDC110-250V
Wide Voltage Range Contactor with AC/DC Universal Coil
EKC2W Series wide voltage range contactors with AC/DC universal coil, are used for controlling 3-phase motors and power circuits up to 690 VAC and 250 VDC.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 18-65A
● Rated working voltage: AC220/230V; 380/400V; 660/690V
● Coil voltage: AC/DC 110~250V
● Rated insulation voltage: 690V
● Number of poles: 3P
● Main contact: 3NO
● Auxiliary contact: 1NO+1NC
● Installation method: Din-rail or Screw installation
3-Pole
AC3 12Amp - 32Amp.
Coil Voltages: DC24, 48V
AC Contactor with DC Coil

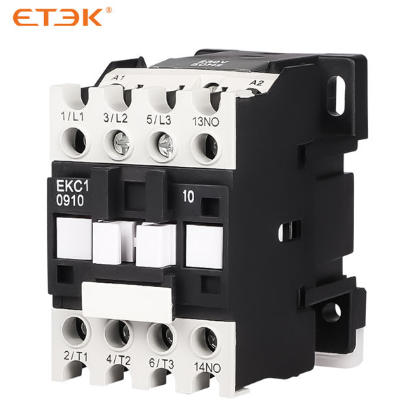

EKC1-DC range contactors with DC coil, are used for controlling 3-phase motors, AC3 and AC4 rated and power circuits up to AC690V.
● Standard: IEC60947-1, IEC60947-4-1
● Rated current: 12-32A
● Rated working voltage: AC220/230V; 380/400V; 660/690V
● Coil voltage: DC24V & DC48V
● Rated insulation voltage: 690V
● Number of poles: 3P
● Main contact: 3NO
● Auxiliary contact: 1NO+1NC
● Installation method: Din-rail or Screw installation
